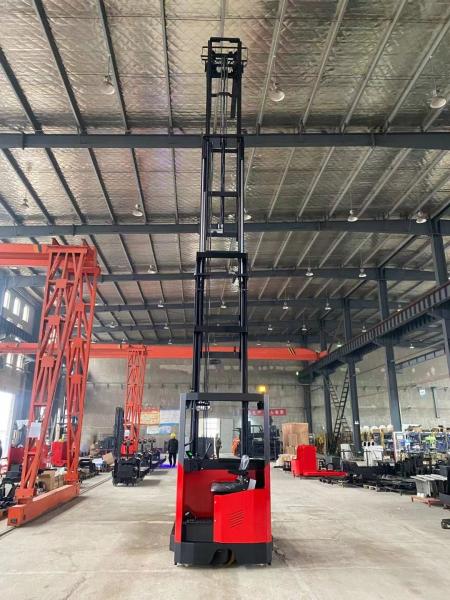

Top Lift Level 12000 M Duty Electric Sit-on Reach Electric Forklift Pallet

  • 1
  • 2
  • 3

Brand Name : YONGJIELI

Model Number : CDD

Certification : CE

Place of Origin : ANHUI, CHINA

MOQ : 1 PC

Price : $6000.00-$7000.00

Payment Terms : L/C, T/T, D/A, D/P, Western Union

Supply Ability : 50 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Battery_Capacity : 750 Ah

Battery_Voltage : 24 volts

Drive Motor : AC

Maximum_Speed : 7.5 mph

Operation Mode : Seat

Power Type : Electric

Product_Name : Double Reach Lift Truck

Tire_Type : Solid

Tyre Material : Polyurethane

Contact Now

More Specification :

  • Forward moving forklift mounted
  • Rated load capacity: 2000kg
  • Lifting height: 12000mm
  • Fork length: 1070mm
  • Battery capacity: 48V500AH
  • Three section fully free gantry
  • Fork tilt forward and tilt backward
  • Wireless camera monitor
  • Electronic steering side pull battery structure

Advantage:

  • Double oil cylinders, wide view mast
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Germany Bucher brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system, pedal and handle damping

Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple brake protection system
  • Emergency braking device
  • Cylinder safety shut-off valve
  • Blue light warning
Model CDD10B CDD15B
Power type Battery
Operation mode Standing type
Rated load kg 1000 1500
Load center distance mm 500
Installation level and form 2A 2A
Tire type Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel) 2/1X+2
Mast type Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695 3300/2795
Wheelbase mm 1200 1300
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000 3510/ 3095
Turning radius (pedal unfold/ fold) mm 1920/ 1500 2010/ 1595
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150 77/150
Descent speed (full load/ no load) mm/s 160/105 200/105
Climbing gradient (S2-5) (full load/ no load) % 6/8 5/8
Drive motor power kw 1.5
Lifting motor power kw 2.2 3
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815 1885
Steering type Electronic steering
Parking brake type Electromagnetic braking
Battery replacement method Lifting type
